Smart WiFi 3-Phase Clamp Meter with 200A Sensors | Real-Time Home Energy Monitor for Electricity Usage Tracking | Perfect for Smart Homes, Solar Systems & Industrial Power Monitoring

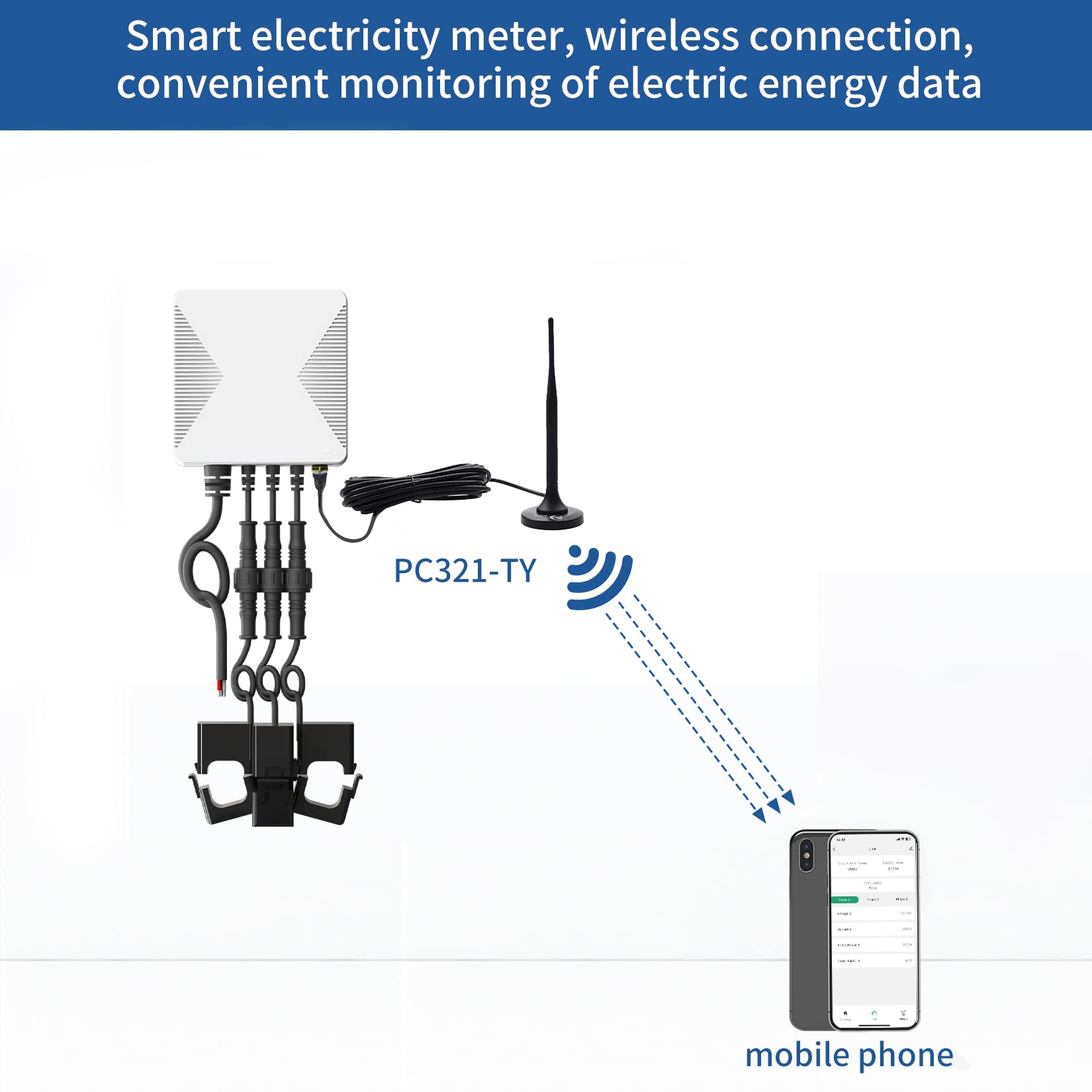

WiFi Smart Energy Meter,take command of your energy use. For 80A-300A CT item, Real time monitor total current, power and KWh , and also show A, B, C each phase voltage , current, power and KWh consumption For 80A-300A CT item, electric stastic , it can record hourly ,daily,monthly and yearly power consumped KWh value for Total and each phase separately. The Power Clamp has a mounting bracket for mounting purposes. 1. Use the mounting bracket as template to mark the two holes on the wall for installing screws. 2. Screw the mounting bracket onto the wall according to marked location. Install wall plugs if necessary. 3. Locate the hooks of the mounting bracket and line up the hooks with the mounting holes on the Power Clamp. Fit the hooks into the mounting holes as the picture below. Installation is now completed. Attach both ends of the Current Transformer Cables first like the picture shown below. Then spinning the waterproof latch clockwise until both ends have been tightened and secured. Open the clamp as shown below. Apply it on the electric meter cable. The arrow on the clamp should face to the correct direction of the electricity current flows (P1→P2or K→L). If the arrow faces the reverse direction, the reading meter will display 0. Technical Specifications Wi-Fi 802.11 B/G/N20/N40 RF Characteristics Operating frequency: 2.4GHz Operating Voltage 100~240 Vac 50/60 Hz Calibrated Metering Accuracy • ≤ 100W ( Within ±2W ) • >100W ( Within ±2% ) CT Provided CT 80A (default) • CT 120A/200A/300A(optional) Operating environment Temperature: -20 ℃~ +55 ℃ • Humidity: ≤ 90% non-condensing Dimension 86(L) x 86(W) x 37(H) mm
