UCTRONICS 12V DC Time Delay Relay Module - Adjustable Timer Switch for Smart Home Automation, Tachograph, GPS Tracking, PLC & Industrial Control Systems - Perfect for Arduino Robotics and Electronic Experiments (DIY Projects & Home Security Applications)
Free shipping on all orders over $50
7-15 days international
13 people viewing this product right now!
30-day free returns
Secure checkout
96036584
Description

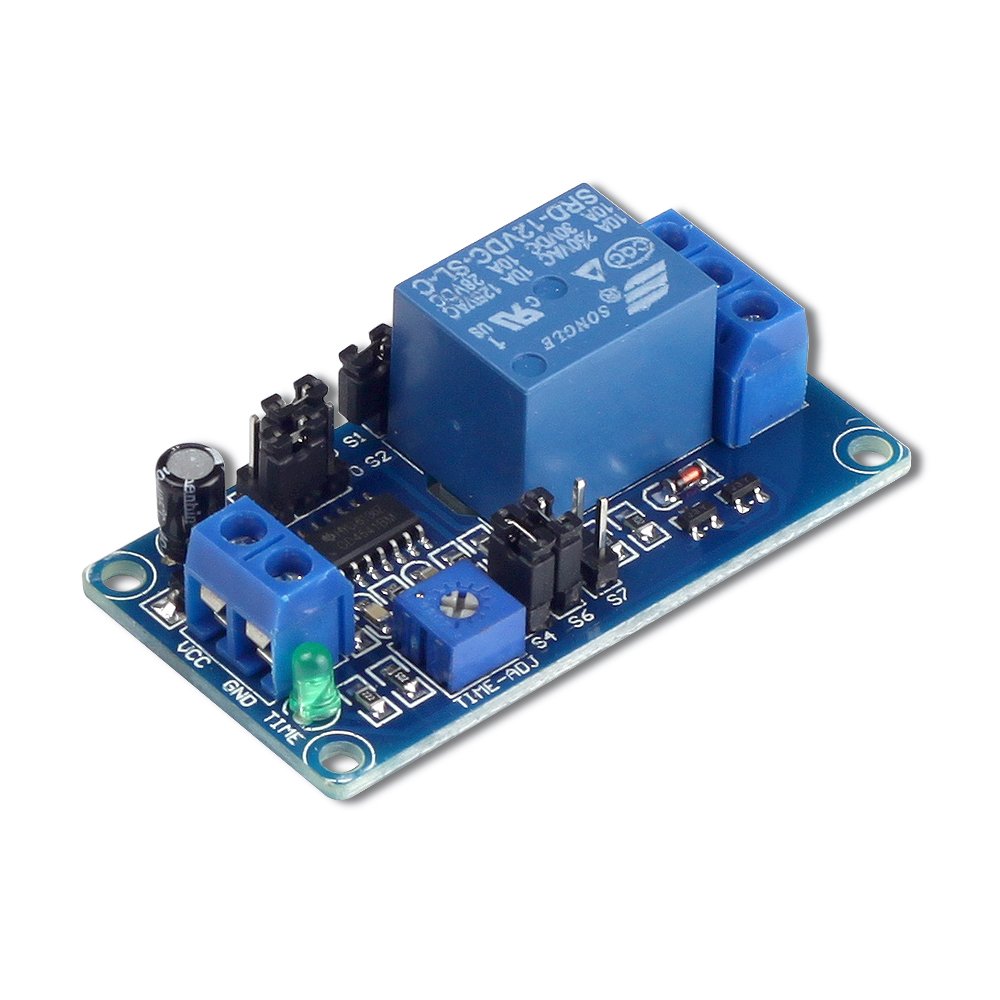

Product description: The DC 12V time delay relay module is versatile and adjustable. The delay time can be adjusted with a potentiometer at shortest 0.1s up to 1h. User can delay time as needed, widely used in Smart home, Tachograph, GPS, PLC control, industrial control, electronic experiment, Arduino robot etc. Features: Input voltage: 12VQuiescent dissipation: 5.5mAMaximum power consumption:42mA Relay load capacity: 250V 10A AC (2500W ideal power AC)30V 10A DC (300W ideal power DC) Functions: Short S6, open S7, delay turn offShort S7, open S6, delay turn onTips： When controlling AC current or DC voltage that is not 12V, please remove the jumper cap of S5, otherwise the module will be burned or will not work properly. Package including: 1pcs Time Relay module Multifunction Time Delay Relay Multifunction Time Delay Relay with Metal Case Time Delay Relay Buying Options Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 320 4.5 out of 5 stars 320 4.3 out of 5 stars 223 Price $11.04$11.04 $19.79$19.79 $9.59$9.59 Operating Voltage DC 12V DC 12V DC 12V Quiescent Current 5.5mA 5.5mA 5.5mA Functions 18 modes 18 modes 2 modes Case no data ✓ no data
Features
IMPORTANT NOTE Please remove the jumper cap of S5 when controlling AC current or DC current voltages other than 12V, otherwise the module will be burned or will not work properly.
Operating Voltage DC 12V; Quiescent Current 5.5mA; Max. Operating Current 42mA; Max. Load Voltage terminal NC is DC 30V or AC 250V, terminal NO is DC 28V or AC 125V; Max. Load Current 10A
Functions Supports on delay and off delay modes, the delay time can be adjusted from 0.1s to 1h, the delay mode and delay time can be set by shorting or opening the jumper pins and rotating the potentiometer.
Self Protection Built with protection against reversal diode, supports anti-reverse protection.
Applications This module works as a switch with time delay on and off function, highly recommended for automotive circuit modification, and LED lights, DC motors, pump and smart home control system.
